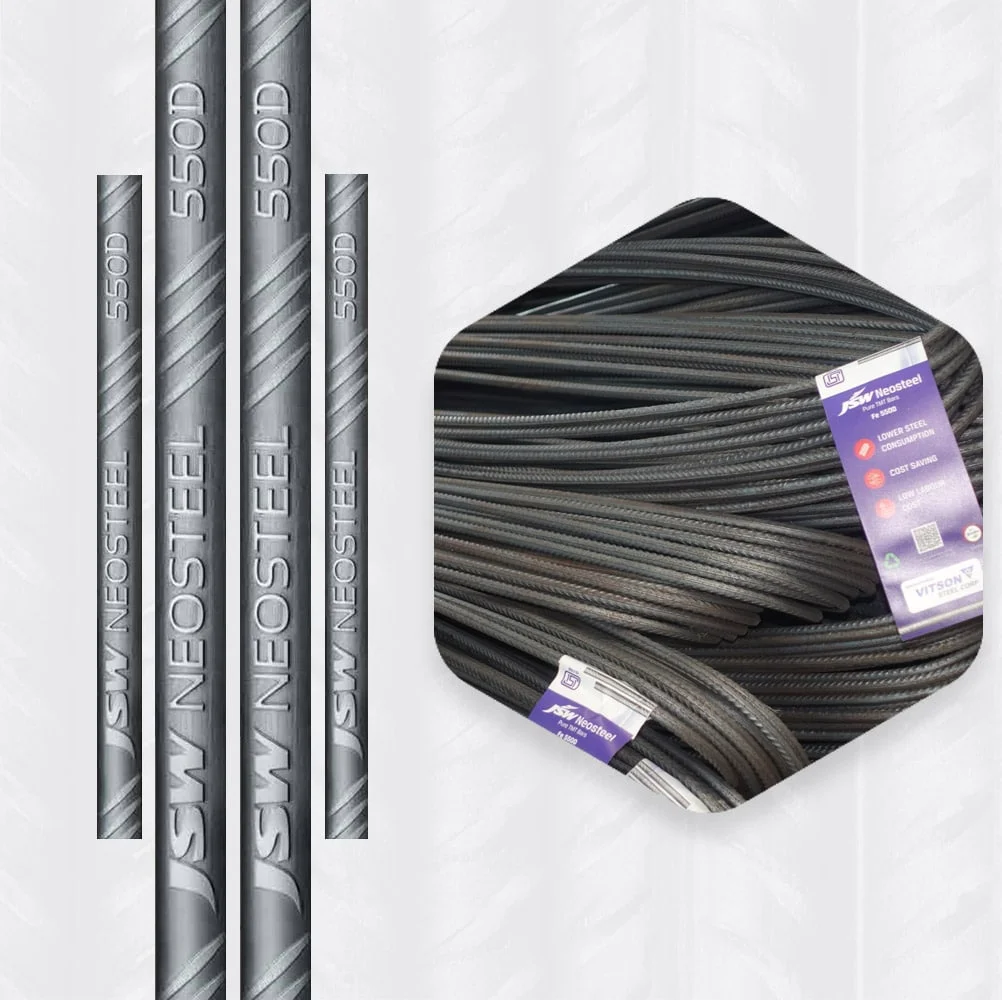

JSW Neosteel Fe 550D
Super premium high strength and high ductility TMT re-bars typically used in construction of ordinary residential & commercial projects, infrastructure projects and in earthquake prone areas due to a high value of percentage elongation
JSW Neosteel Fe 550D is manufactured in our state-of-the-art rolling mills using the finest raw materials ensuring each TMT bar of JSW Neosteel Fe 550D is of highest quality
- CONSISTENT QUALITY ACROSS THE BAR
- HIGHEST LEVEL OF PURITY
- BEST BONDING WITH CEMENT
Download Brochure
Product Range and Maximum Weight
| Nominal Size |
Tolerance Wt/m |
Maximum Wt/m (kg/m) |
Nominal Size (mm) |
Tolerance Wt/m |
Maximum Wt/m (kg/m) |
|---|---|---|---|---|---|
| 8 | +0/-7% | 0.395 | 25 | +0/-3% | 3.85 |
| 10 | +0/-7% | 0.617 | 28 | +0/-3% | 4.83 |
| 12 | +0/-5% | 0.888 | 32 | +0/-3% | 6.31 |
| 16 | +0/-5% | 1.58 | 36 | +0/-3% | 7.99 |
| 20 | +0/-3% | 2.47 | 40 | +0/-3% | 9.86 |
Chemical Properties
Mechanical Properties
Chemical Properties
| Elements | IS 1786:2008 Amend.No.4 Fe 550D | JSW Neosteel Fe 550D* |
|---|---|---|
| % C (Max) | 0.25 | 0.24 |
| % S (Max) | 0.04 | 0.04 |
| % P (Max) | 0.04 | 0.04 |
| % (S+P) (Max) | 0.075 | 0.07 |
| % N (Max) | 0.012 | 0.012 |
| CE (Max) | 0.61 | 0.50 |
Mechanical Properties
| Product Attributes | IS 1786:2008 Amend.No.4 Fe 550D | JSW Neosteel Fe 550D* |
|---|---|---|
| YS (Min) Mpa | 550 | 570 |
| UTS (Min) Mpa | 600 | 630 |
| UTS/YS (Min) | 1.08 | 1.12 |
| %El (Min) | 14.5 | 16 |
| % Total El (Min) | 5 | 7 |
